Fiberglass sheets stand as a testament to engineering ingenuity, offering a compelling combination of versatility, strength, and durability that is critical across numerous industrial and commercial applications. These composite materials, meticulously crafted by a dedicated fiberglass manufacturer like Redhawk Fiberglass, provide solutions where traditional materials often fall short. A key component contributing to the robust nature of many fiberglass sheet material products is the 6-point mat, a reinforcement type that significantly enhances mechanical properties and ease of fabrication. This article explores the fundamental characteristics of fiberglass sheets, their diverse forms, and the specific advantages they bring to various sectors.

Defining Fiberglass Sheets: Composition and Core Principles

A fiberglass sheet is a composite material formed by embedding glass fibers within a polymer matrix, typically a thermosetting fiberglass resin. This combination leverages the high tensile strength of glass fibers with the binding and protective qualities of the resin. The resulting material, also known as Fiber Reinforced Polymer (FRP), offers a superior strength-to-weight ratio and inherent resistance to environmental degradation that surpasses many conventional materials.

The fundamental principle behind fiberglass sheets is load transfer: the strong glass fibers carry the primary loads, while the surrounding fiberglass resin distributes these loads evenly throughout the material, protects the fibers from abrasion and chemical attack, and provides the desired shape and surface finish. The type of glass fiber, its arrangement, and the specific fiberglass resin used all dictate the final properties of the fiberglass sheet.

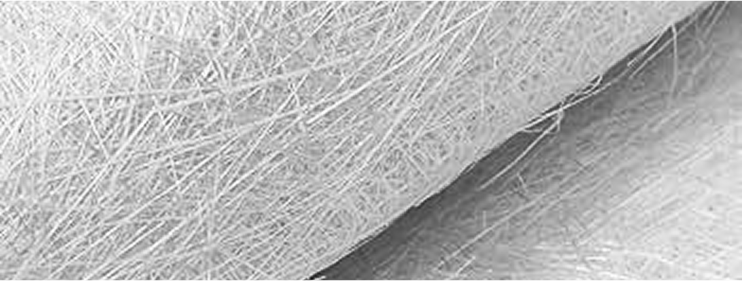

The Role of Reinforcement: Focus on 6-Point Mat (Chopped Strand Fiberglass)

The term "6-point mat" refers to a specific type of fiberglass reinforcement commonly known as Chopped Strand Mat (CSM). This material consists of randomly oriented, short lengths of glass fibers (typically 1 to 2 inches long) held together by a chemical binder. The "6-point" designation often refers to a specific weight or density, such as 6 ounces per square yard, indicating a particular thickness and fiber content.

When used in the production of fiberglass sheets, 6-point mat offers distinct advantages:

• ‍Isotropic Properties: Unlike woven fabrics that have directional strength, the random orientation of fibers in a 6-point mat provides relatively uniform strength in all directions within the plane of the fiberglass sheet. This is beneficial for applications requiring consistent performance regardless of load direction.‍

• Excellent Conformability: The chopped, non-woven nature of the mat allows it to conform easily to complex curves and irregular shapes during molding processes. When the fiberglass resin is applied, the binder dissolves, allowing the fibers to move and adapt to the mold's contours without wrinkling or bridging.‍

• Rapid Wet-Out and Thickness Build-Up: The open structure of 6-point mat allows for quick and thorough saturation by the fiberglass resin, ensuring good lamination. It also builds thickness rapidly, making it efficient for creating robust, rigid fiberglass sheets with significant bulk.‍

• Cost-Effectiveness: Compared to some other forms of fiberglass reinforcement, chopped strand mat is often a more economical option, making it a popular choice for a wide range of general-purpose fiberglass sheet applications.

Other forms of fiberglass reinforcement also contribute to the versatility of fiberglass sheets:

• ‍Pultruded Fiberglass: Produced by pulling continuous fiberglass rovings through a resin bath and a heated die, creating strong, linear profiles. These can be used as structural elements within larger fiberglass sheet assemblies or as panels themselves.‍

• Filament Wound Fiberglass: Involves winding continuous fiberglass filaments, impregnated with fiberglass resin, onto a rotating mandrel. This method creates exceptionally strong, hollow structures like pipes and tanks, which can be seen as large, curved fiberglass sheet material forms.‍

• Thermoplastic Fiberglass: Combines fiberglass with thermoplastic resins, offering properties like impact resistance and the ability to be thermoformed after initial production. This results in highly durable fiberglass sheet products suitable for specific applications.‍

• Gypsum Fiberglass: Refers to fiberglass used to reinforce gypsum-based products, enhancing their strength and crack resistance, often forming fire-resistant fiberglass sheet panels.

The Crucial Role of Fiberglass Resin

While the glass fibers provide the strength, the fiberglass resin matrix is equally vital to the performance of fiberglass sheets. The resin binds the fibers, protects them from environmental factors, and dictates many of the final properties, including:

• ‍Chemical Resistance: Specialized resins, such as vinyl ester, provide exceptional resistance to acids, alkalis, and other corrosive chemicals, making fiberglass sheets ideal for harsh industrial environments.‍

• Temperature Resistance: The type of fiberglass resin influences the maximum operating temperature of the composite.‍

• Mechanical Properties: The resin contributes to the overall stiffness, impact resistance, and fatigue performance of the fiberglass sheet.‍

• Adhesion: The resin ensures strong adhesion to the glass fibers, facilitating efficient load transfer.

Redhawk Fiberglass, as a skilled fiberglass manufacturer, carefully selects the appropriate fiberglass resin to match the intended application of each fiberglass sheet, ensuring optimal performance.

Key Properties and Advantages of Fiberglass Sheets

Regardless of the specific reinforcement or resin system, fiberglass sheets offer a compelling set of properties that drive their widespread adoption:

• ‍High Strength-to-Weight Ratio: Fiberglass sheets are significantly lighter than traditional materials like steel or aluminum while offering comparable or superior strength. This property is crucial for reducing overall weight in vehicles, aircraft, and portable equipment, leading to improved fuel efficiency and easier handling.‍

• Exceptional Durability and Longevity: Fiberglass sheets resist rot, rust, corrosion, and insect damage. This inherent durability translates to a longer service life and significantly reduced maintenance requirements compared to materials prone to environmental degradation.‍

• Corrosion and Chemical Resistance: When formulated with appropriate resins, fiberglass sheets are impervious to a wide range of corrosive chemicals, salts, and moisture. This makes them ideal for environments where metals would rapidly degrade, such as chemical processing plants, wastewater treatment facilities, and marine applications.‍

• Dimensional Stability: Fiberglass sheets maintain their shape and dimensions across varying temperatures and humidity levels. They do not warp, swell, or shrink significantly, ensuring structural integrity and precise fit over time.‍

• Electrical Non-Conductivity: Fiberglass is an excellent electrical insulator, making fiberglass sheets safe for use in electrical enclosures, utility poles, and applications where electrical isolation is required.‍

• Ease of Fabrication: Fiberglass sheet material can be readily cut, drilled, bonded, and assembled using standard tools and techniques. This ease of fabrication simplifies manufacturing processes and on-site modifications.‍

• UV Resistance: With the incorporation of UV inhibitors into the fiberglass resin or surface coatings, fiberglass sheets can withstand prolonged exposure to sunlight without significant degradation, making them suitable for outdoor applications.

Manufacturing Fiberglass Sheets: From Raw Material to Finished Product

The production of fiberglass sheets involves various sophisticated processes depending on the desired properties and application.

• ‍Compression Molding for SMC Fiberglass: SMC fiberglass is a pre-impregnated fiberglass sheet material that is molded under high heat and pressure. This process creates highly uniform, dimensionally accurate fiberglass sheets with excellent surface finishes, ideal for automotive body panels, electrical components, and other high-volume applications requiring precise tolerances.‍

• Pultrusion (for panel forms): While primarily known for linear profiles, pultrusion can also create wide, flat panels that function as fiberglass sheets for structural applications, offering high strength and consistent properties.

Redhawk Fiberglass, as an experienced manufacturer of fiberglass, employs these advanced techniques to ensure the highest quality and performance of its fiberglass sheet products.

Diverse Applications of Fiberglass Sheets

The versatility and durability of fiberglass sheets make them indispensable across a multitude of industries:

Transportation (Automotive, Marine, Rail):

• ‍Automotive: SMC fiberglass is widely used for lightweight body panels (hoods, fenders, trunk lids), interior components, and structural elements, contributing to fuel efficiency and performance.‍

• Marine: Fiberglass sheets form the hulls, decks, and superstructures of countless boats and yachts, valued for their corrosion resistance in saltwater and ease of molding into complex shapes.‍

• Rail: Interior panels, seating components, and structural elements in trains benefit from fiberglass's lightweight and fire-retardant properties.

Construction and Infrastructure:

• ‍Roofing and Cladding: Translucent or opaque fiberglass sheets are used for skylights, wall panels, and roofing in industrial buildings, agricultural structures, and commercial facilities due to their durability and weather resistance.‍

• Structural Panels: In modular construction, fiberglass sheet material can form lightweight, durable wall panels, floor systems, and bridge decks.‍

• Chemical Containment: Liners for tanks, secondary containment systems, and trench covers are fabricated from corrosion-resistant fiberglass sheets in chemical plants.‍

• Electrical Enclosures: Non-conductive fiberglass sheets are used to create safe, durable enclosures for electrical components, switchgear, and control panels.‍

• Circuit Boards: Specialized fiberglass sheet material serves as the substrate for printed circuit boards (PCBs) due to its electrical insulation properties and dimensional stability.

Industrial Equipment and Machinery:

• ‍Machine Guards and Housings: Lightweight and durable fiberglass sheets protect machinery and personnel.‍

• Ducting and Ventilation: Corrosion-resistant fiberglass sheets are fabricated into ductwork and fan housings for chemical fume exhaust systems.‍

Recreational and Consumer Goods:

• ‍Sporting Goods: From surfboards to kayaks and snowboards, fiberglass sheets provide the necessary strength and lightweight characteristics.‍

• Bathroom Fixtures: Shower stalls, bathtubs, and sinks are commonly made from fiberglass sheet composites due to their water resistance and moldability.

Redhawk Fiberglass, operating as a reliable fiberglass distributor, ensures that these diverse industries have access to the precise fiberglass sheet products they require.

Redhawk Fiberglass: A Trusted Fiberglass Material Suppliers

As a premier manufacturer of fiberglass composites, Redhawk Fiberglass stands as a trusted fiberglass supplier for industries seeking high-performance materials. Our commitment to quality begins with the sourcing of premium glass fibers and specialized fiberglass resin systems, ensuring that every fiberglass sheet meets stringent performance criteria.

We leverage our expertise in various manufacturing processes, including those producing SMC fiberglass, pultruded profiles, and filament-wound structures, to deliver a comprehensive range of fiberglass sheets and fiberglass sheet material tailored to specific client needs. Our technical team works closely with customers, providing guidance on material selection and design optimization to ensure the ideal fiberglass sheet solution for each unique application. Redhawk Fiberglass's robust supply chain and dedication to customer service solidify its position as a leading fiberglass material suppliers in the composite industry.

Conclusion

Fiberglass sheets, particularly those incorporating reinforcements like the versatile 6-point mat, are foundational materials in modern manufacturing. Their exceptional combination of strength, lightweight properties, corrosion resistance, and design flexibility makes them indispensable across a wide spectrum of applications, from transportation to industrial infrastructure. By providing high-quality fiberglass sheets and fiberglass sheet material through advanced manufacturing processes, Redhawk Fiberglass, as a dedicated fiberglass manufacturer and fiberglass distributor, continues to enable industries to achieve superior durability, efficiency, and performance in their products and structures.

‍
